01 / WOVEN WIRE MESH
Stainless Steel & Specialty Wire Mesh
Stainless steel woven mesh is a widely used filtration material. Select by alloy, mesh count, wire diameter, aperture and weave.
Start with a photo or drawing, even if some specifications are still unknown.
Download catalog (Chinese PDF)Product & selection information
- Common materials
- SS304 / 304L, SS316 / 316L, 2205 / 2507 duplex stainless steel; copper, titanium, Monel
- Weave types
- Plain, twill, Dutch and reverse Dutch weave
- Selection parameters
- Mesh count, wire diameter, aperture, mesh width and length
- Customization options
- Special materials, filtration requirements and packaging
Common structures & selection priorities
- Supply formats
- Rolls, cut sheets, discs and mesh for cylinders, screens and composite filters
- Choosing a weave
- Select plain and twill weave by mesh count and aperture; confirm Dutch and reverse Dutch weave against filtration rating, flow and differential pressure
- Key considerations
- Media compatibility, target particle size, effective flow area, support strength and cleaning method
Weave construction reference

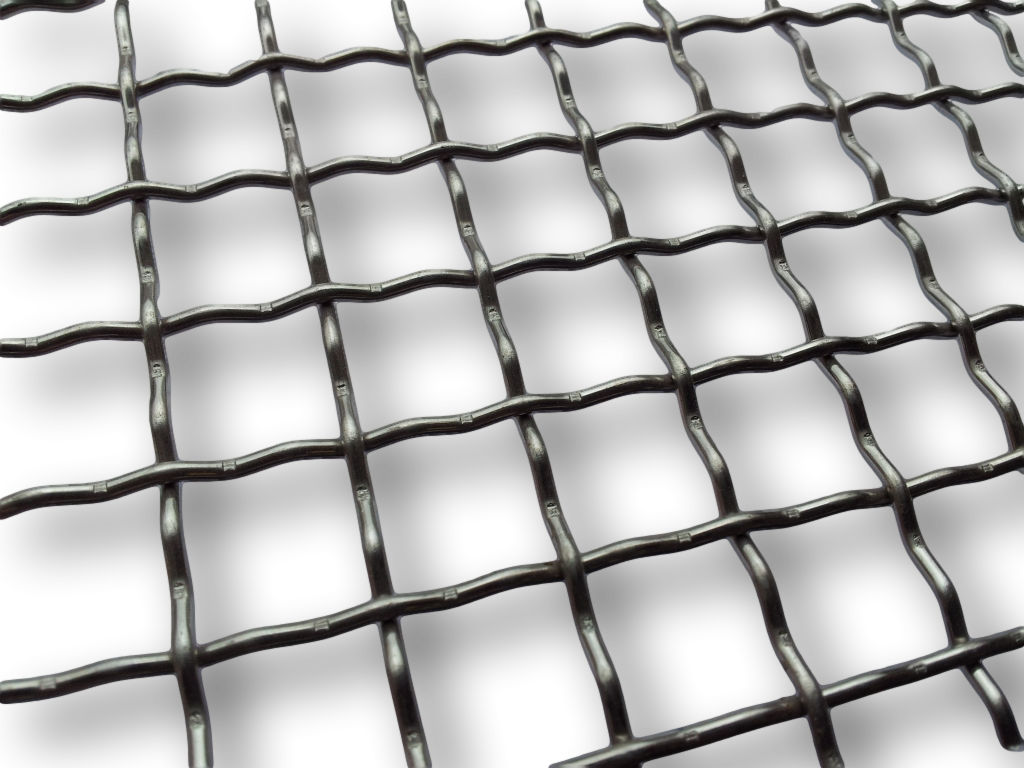

Coarse stainless steel wire cloth illustrates warp and weft construction. It is not a WLNEXO supply specification.
Image by Robinson Wire Cloth Ltd.; CC BY-SA 4.0. Original image unchanged. Wikimedia Commons · CC BY-SA 4.0
